It is a device used for direct steam injection. Direct steam injection utilises the discharge of steam into a liquid at a low temperature. The steam gives up its total heat to the surrounding liquid, increasing its temperature accordingly. Direct steam injection is a commonly used method for boiler feedtank heating. It is a simple method, as no heating coil or steam trap set is needed, and there is no need to consider the condensate return as all the steam is condensed and mixed in with the tank contents.
Special Note: for every kg of steam injected into the liquid, 1 litre of water will be added to the volume of liquid in the tank. This should be considered for tank size to avoid overflow.

A connected steam flow draws in cold liquid from the tank contents into a chamber and mixes it with the steam, then discharges the mixed/heated liquid into the tank.

The steam supply pipe should be at least the same size as the Heater inlet connection. The Heater should be securely bracketed to avoid vibration and fitted as low down in the water as possible, ensuring the heater is sufficiently submerged at all times. To avoid wasting steam and maximising the silencing and heating process, install a tail pipe on the discharge end approximately 250mm to 300mm long, pointing to the most remote part of the tank to allow thorough mixing and circulation in the tank.

It is rated to handle 13 bar of pressure (188.5 psi), making it suitable for use in moderately high-pressure heating systems.

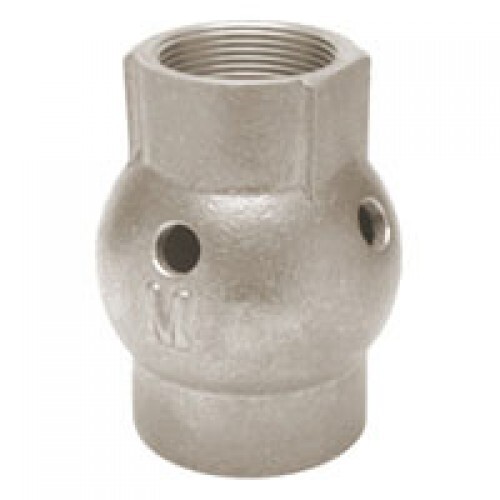

This Bronze Silent Water Heater is made of bronze, a corrosion-resistant material that ensures durability, especially when exposed to water and steam.

The "silent" feature means the valve is designed to operate with reduced noise. This is achieved through careful engineering to minimize turbulent flow and steam vibration, ensuring quieter operation.

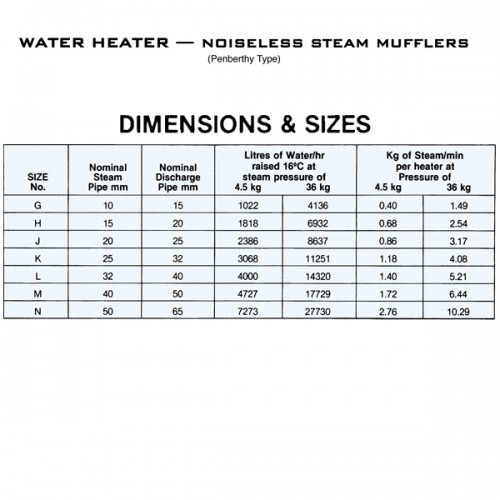

We have steam water heaters ranging from 1/2” to 2” in size.

It is easy to install, and you can do it yourself. However, we recommend that you let a professional plumber or heating engineer install it to ensure that there is no leakage and no loose fitting, especially for high-pressure applications.

The purchase includes the water heater itself. Other accessories, fittings, or seals must be purchased separately. Contact our customer support team for more details.

Only a regular inspection is recommended to check for leaks, damage, or sediment build-up, and cleaning for silent and smooth operation.

You can buy replacement parts or seals directly from Stead & Baker or authorized suppliers through an online order, and we will ship them promptly to you.

Before purchasing, check your heating system’s specifications, pressure requirements, temperature limits, and pipe sizes. If you’re uncertain, please contact our customer service, and we will help you confirm compatibility.

We offer a 12-month warranty for the Bronze Silent Water Heater. We implement strict quality controls and conduct pre-dispatch testing to minimize any issues. Our support team is also available to assist your post-purchase, ensuring your satisfaction and peace of mind.

For technical assistance, installation help, or any other questions about the Bronze Silent Water Heater, visit our official website or call our customer service phone number.
