Bronze Steam Water Tank Heater 13 Bar

Description Dimensions FAQ Specifications Reviews (0)

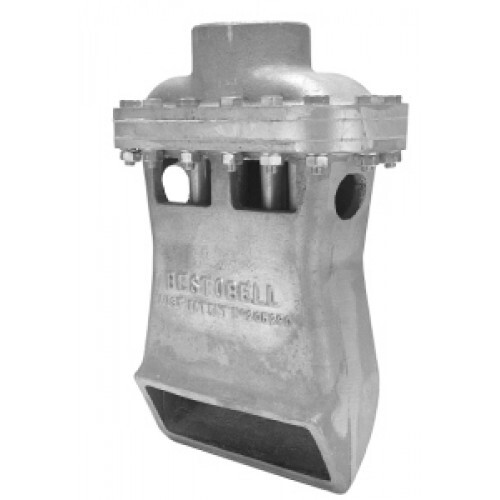

This Rapid Tank Heater provides a silent and economical method of heating liquids on tanks by direct steam injection. Steam and the liquid are rapidly mixed within the body of the unit and effectively circulated throughout the tank with even heat distribution. Liquid can be heated provided it is compatible with the tank heater material. This design is a multi-jet assembly, with the number of jets varying according to the steam capacity required. When the steam valve is opened the velocity of the steam issuing from the jets, which are inserted in the neck of the venturi, induces the liquid through the slots at the inlet, heats it and discharges the mixture through the outlet mouthpiece. As with all systems of heating by direct steam injection, the best results are obtained with low steam inlet pressures. Steam should be as dry as possible.

WORKING CONDITIONS
Standard units are designed for up to 200 p.s.i steam pressure. The Steam Control Valve should be fully open during the initial heating period. When the liquid approaches the desired temperature, the Control Valve should be regulated to maintain constant liquid temperature with gentle circulation. Alternatively, thermostatic control may be arranged.

INSTALLATION
The heater must be completely immersed in the liquid with the outlet mouthpiece not more than 6” from the bottom of the tank. The steam supply line to which the heater is attached should be firmly clamped in at least one place to the wall of the tank. In large vessels, better heat distribution is obtained by using several small tank heaters in preference to a single large unit.

Select an industrial tank heater above to configure to your specifications and purchase online. We can also do flanged available upon request.

Steam Pressure Gauge (kPa)	Sizes of Rapid Tank Heater (mm) and Steam Discharged (kg/hr)
Steam Pressure Gauge (kPa)	15	20	25	40	50	100
34.47	18	32	36	91	159	591
68.95	32	50	57	168	264	977
103.4	42	89	95	255	418	1445
137.9	48	114	123	336	518	1886
172.3	57	136	141	418	645	2318
206.8	64	159	170	482	750	2768
275.8	82	182	199	609	982	3300
344.7	93	255	264	727	1159	3864
413.7	111	291	305	836	1341	4500
482.6	123	336	355	973	1523	5091
551.6	143	377	386	1045	1659	5500
620.5	157	414	425	1145	1886	6227
689.5	166	432	455	1241	2014	6727
861.9	202	491	511	1520	2445	8023
1034	237	600	639	1832	3073	9364
1103	257	632	691	1923	3095	10364
1379	323	823	870	2427	3909	13091

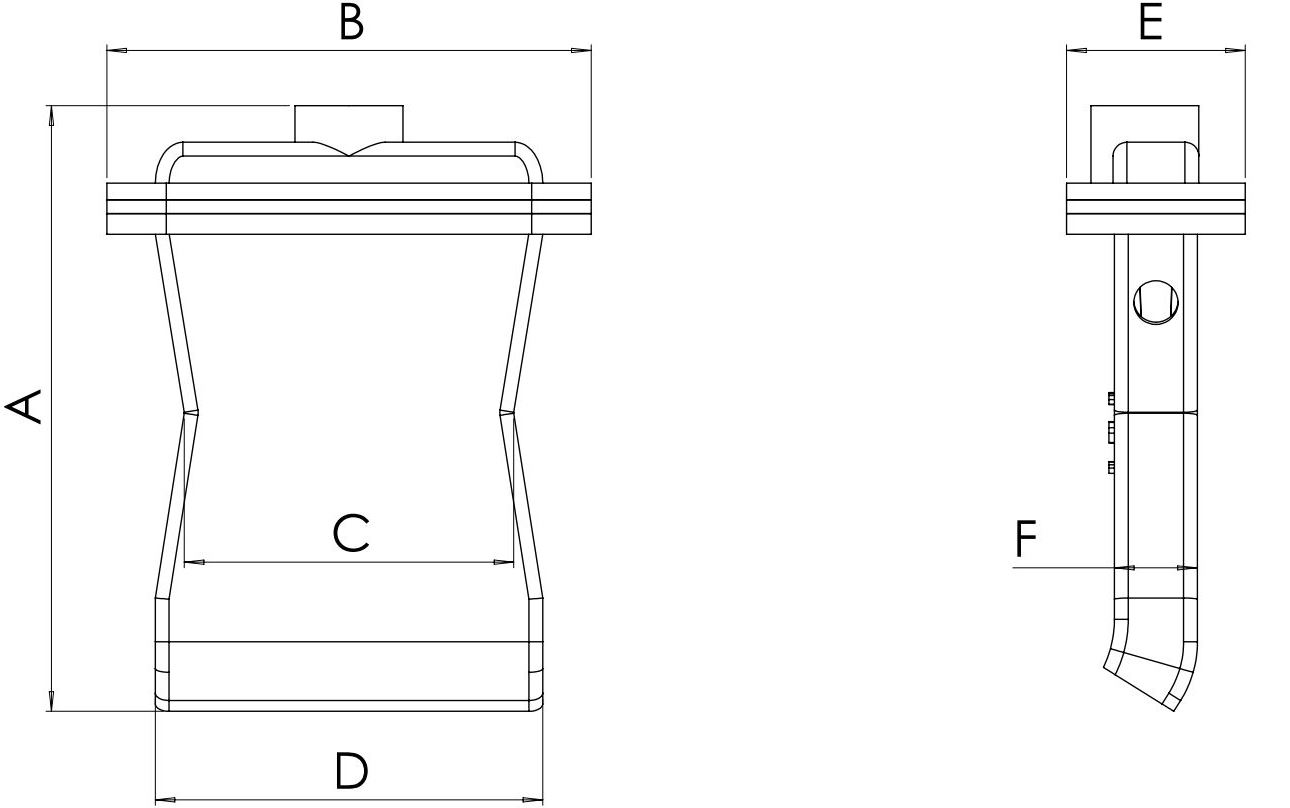

Pipe Dimensions	Sizes of Rapid Tank Heater (mm)
Pipe Dimensions	15	20	25	40	50	100
A	219	324	324	337	343	391
B	175	216	216	216	235	305
C	121	140	140	140	165	216
D	140	165	165	165	197	229
E	67	100	100	100	121	178
F	30	50	50	50	75	100
